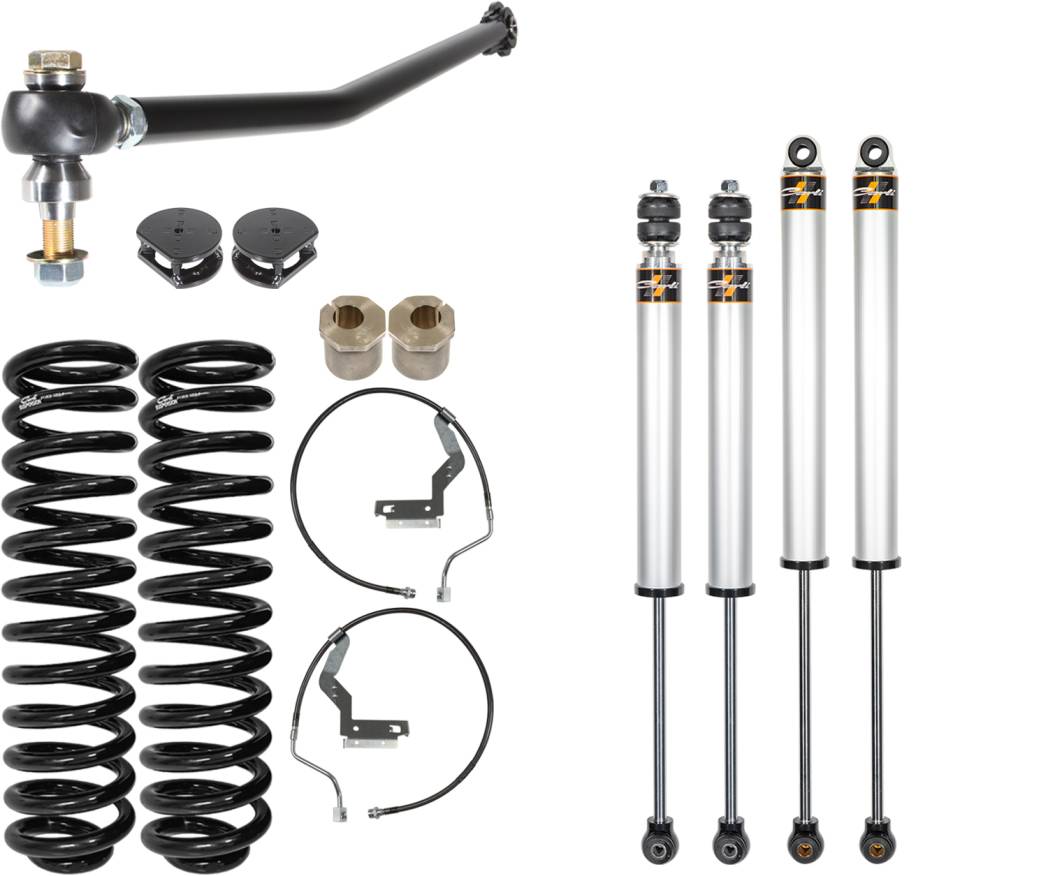

CS-FLVL-COM-CS-17 | Carli Suspension Carli Spec 2.0" IFP Front & Rear 2.5" Lift Commuter System For Ford F-250/F-350 4WD | 2017-2023 | Diesel

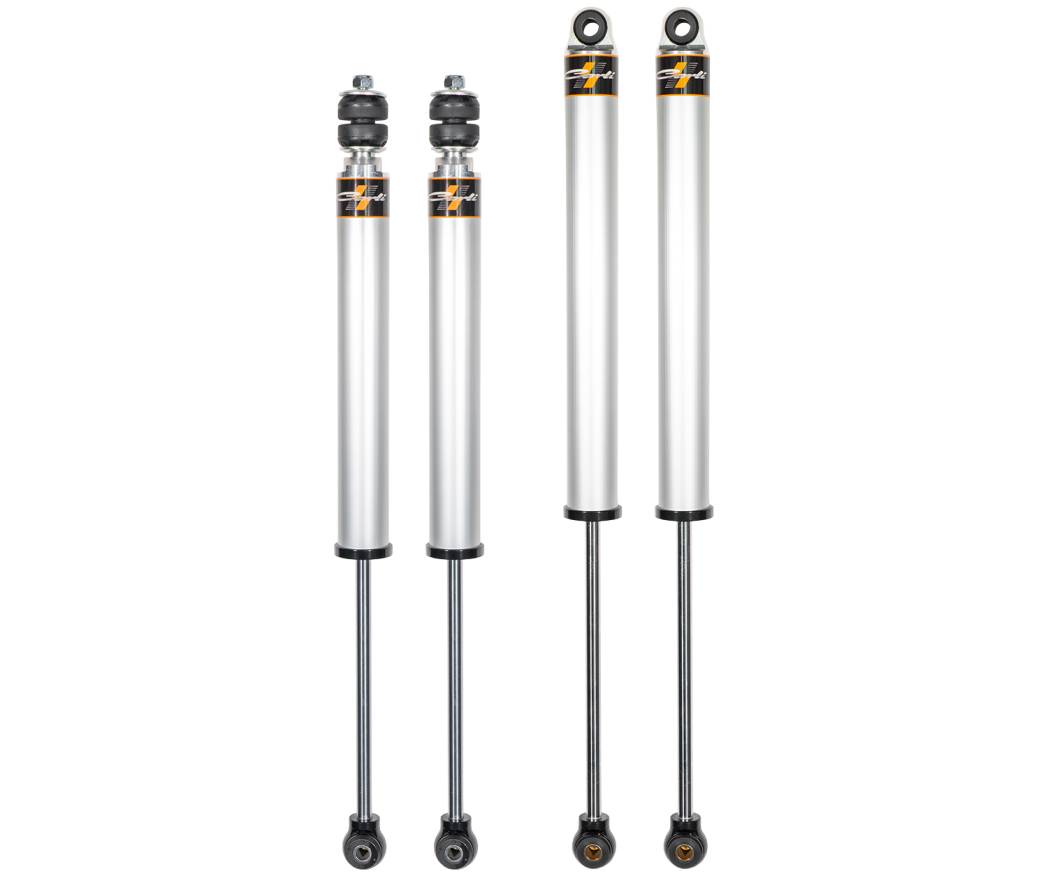

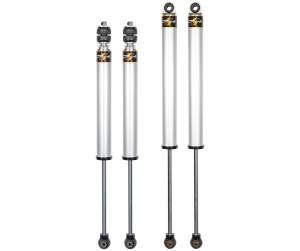

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

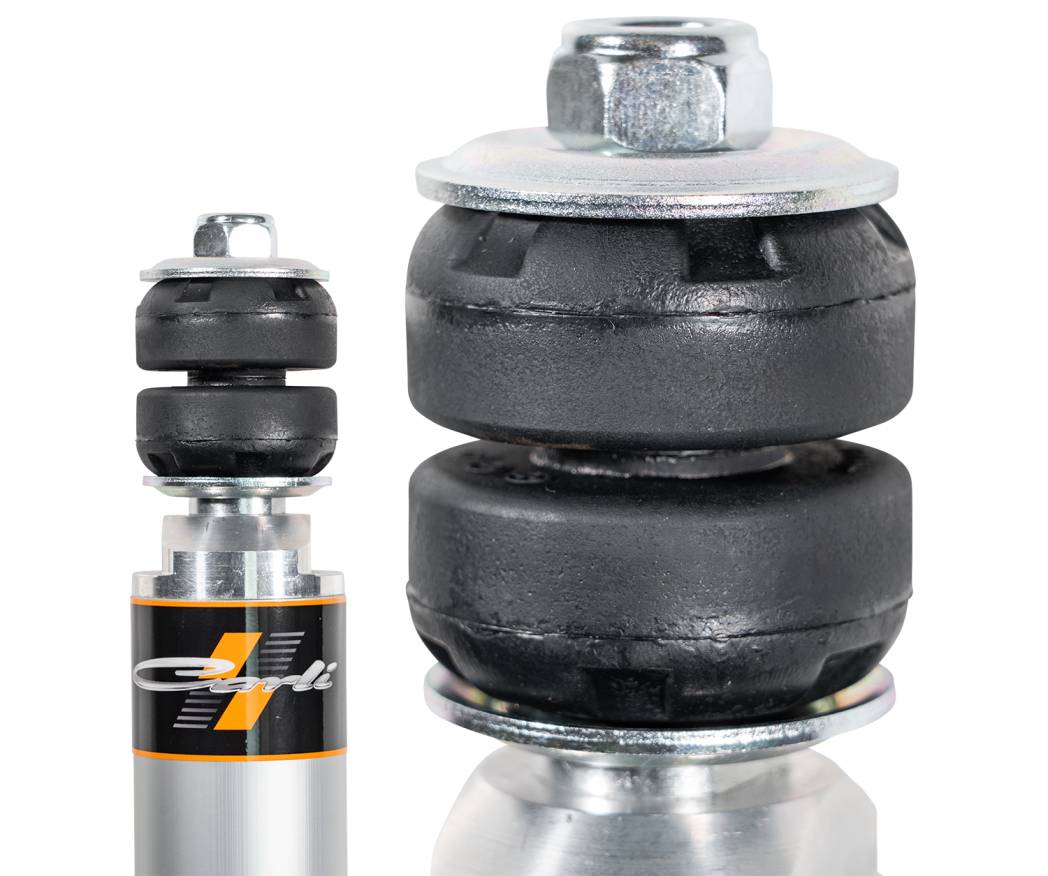

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli. More details on these shocks can be found HERE. Unlike most of our suspension systems, the Commuter was tuned with 20”, factory wheels on factory Michelin tires given many in the entry level, 3.5” lift market want the most bang for their buck and will continue to run the factory wheels and tires.

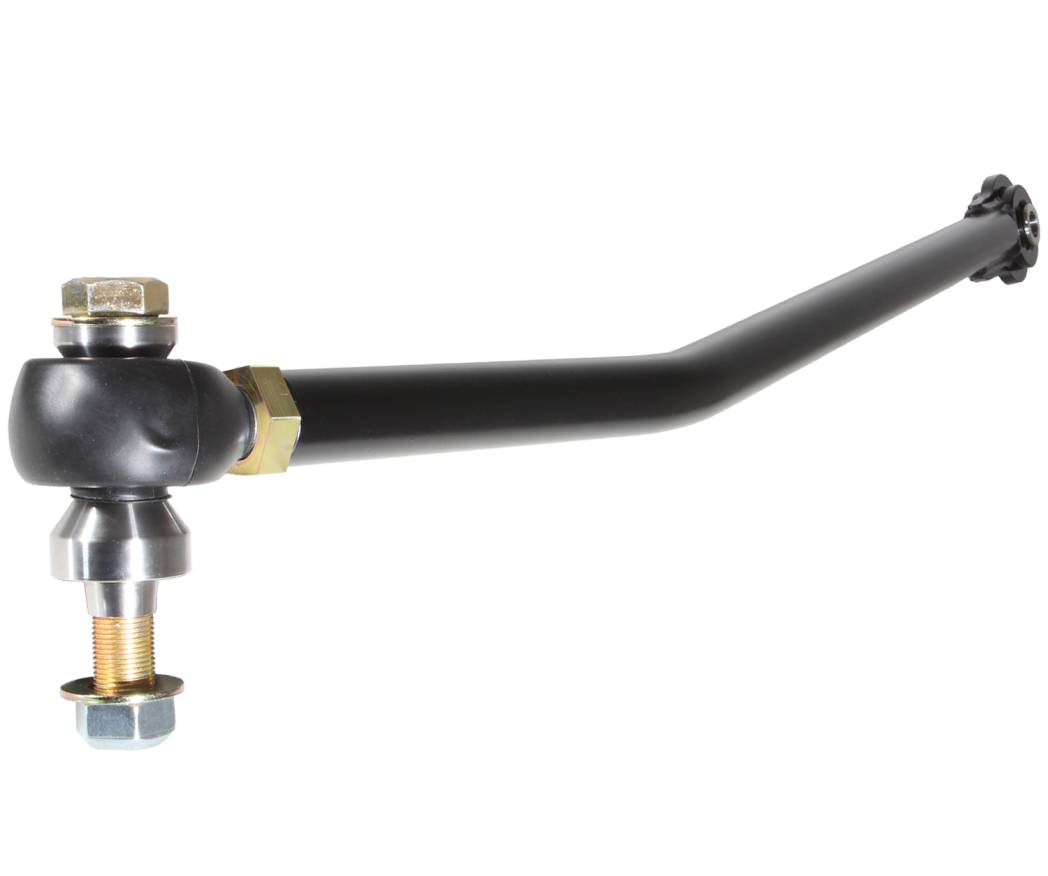

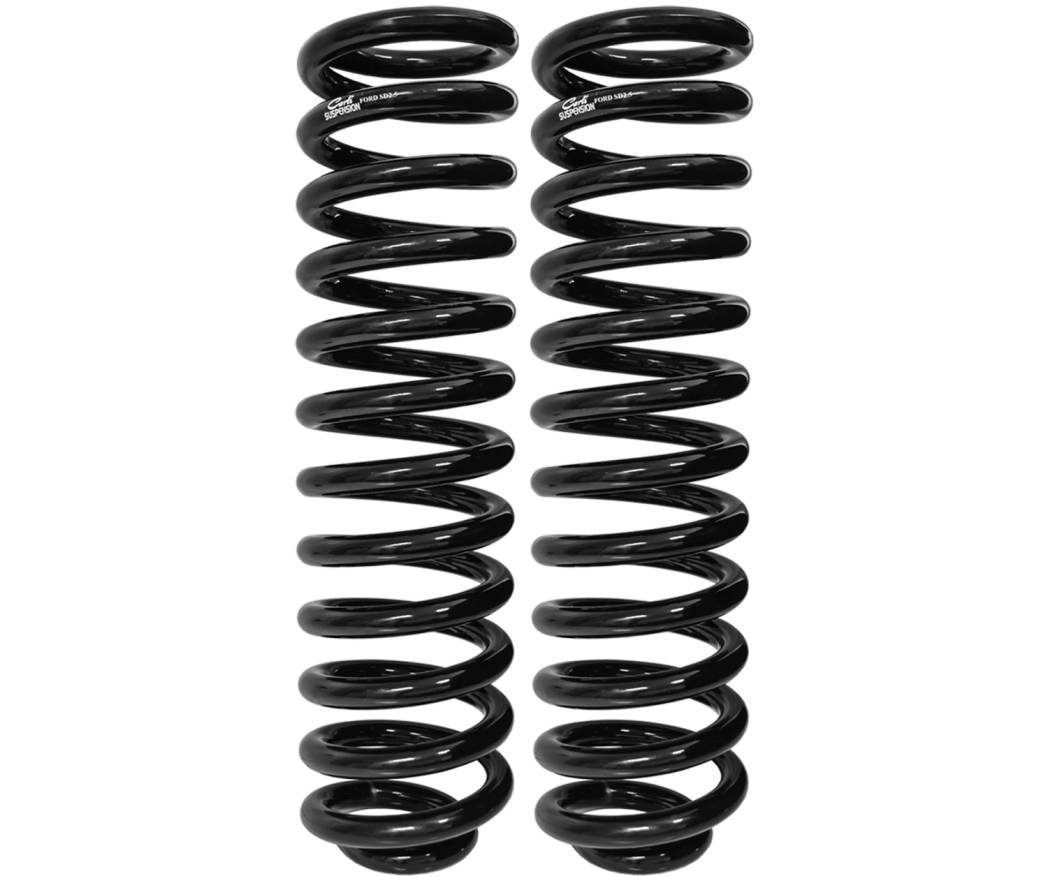

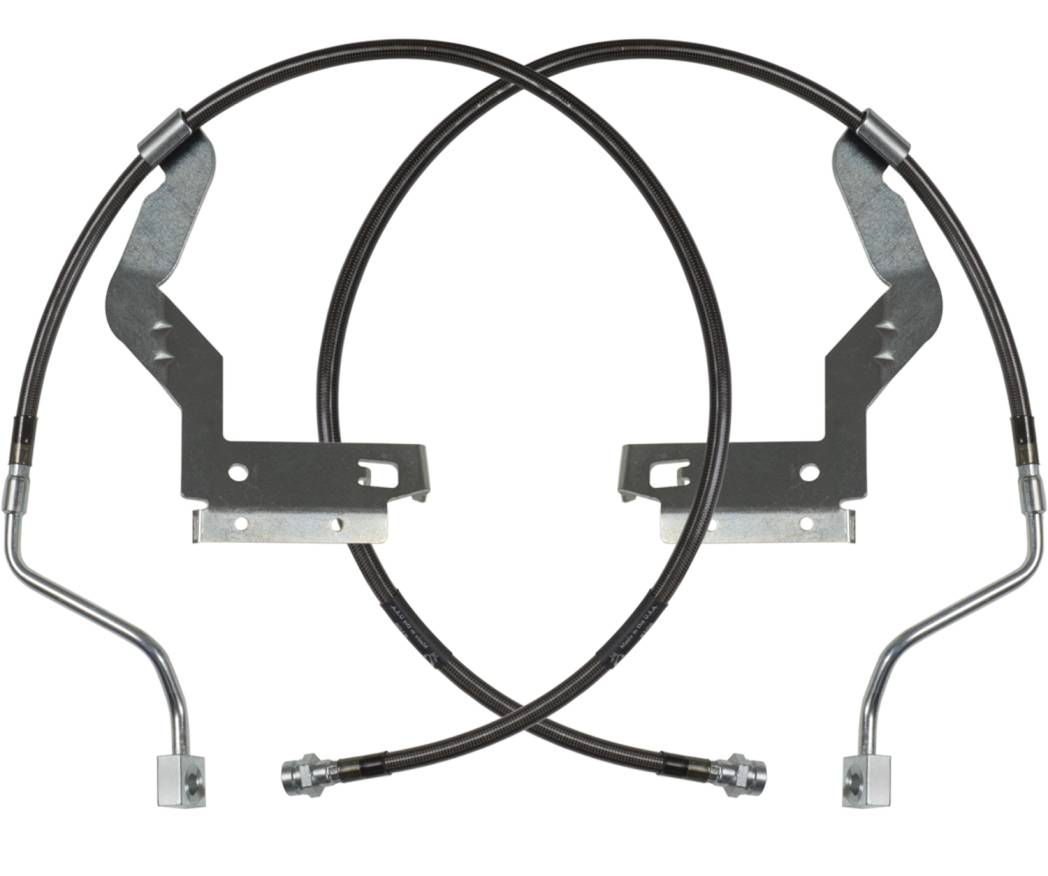

The truck will sit 2.5” higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering and a fabricated, High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or our Extended Sway Bar links – a FAR more robust option. The replacement End Links are the only option compatible with a plow bracket.

The Commuter is the beginning of our no-compromise, custom tuned suspensions. The 2.5” lift variation was tuned with the Progressive Add-a-Pack. The Add-a-Pack installs in place of the lower, factory overload spring effectively making the factory leaf spring pack progressive in nature. In the 2017 platform, the factory block is eliminated with the installation of the Add-a-Pack; thus, axle wrap and wheel hop are non-existent. A rear bump stop drop is included to bridge the distance lost by removing the factory block.

Payload capacity is maintained and the rear end becomes a touch softer while being far more planted and predictable. The custom tuning in the matchiong rear shocks is optimized to control the combination of our Progressive Add-a-Pack combined with the factory main pack; it’s for this reason we advise against upgrading to the Full Progressive Spring Pack (too much rebound valving for a lighter rate spring).

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

Lift Height: 2.5″ / Front Travel: 9.5″ /  Rear Travel: 12.3″ / Shock Type: 2″ Internal Reservoir / Tire Fitment: 37″ x 12.5″

Customization Information

 SKU: CS-FSHACKLE-11
- Greasable and Rebuildable
- Far Better Ride than Factory Shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs

Radius Arms

*OPTIONAL* - Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

SKU: CS-FARA-LVL-05
- 0.5°-2.5° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- 12" Limit Straps Kit Included
- 17-4 Stainless Spherical Joint for longevity and bind free Cycling

High Mount Steering Stabilizer

*OPTIONAL* - Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

SKU: CS-FHMSS-17
- Inside the Carli Stainless Stabilizer
- Long Lasting Performance and Appearance
- Bolt in Replacement for OEM Stabilizer
- Fitment: 2017-23 F250/350 4x4
- Works on leveled and lifted trucks ONLY

Low Mount Steering Stabilizer

*OPTIONAL* - Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

SKU: CS-FLMSS-05
- Inside the Carli Stainless Stabilizer
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Optimized for Carli 2.5"-5.5" Systems

Trophy Hitch

*OPTIONAL* - Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

SKU: CS-FHITCH-1723
- Direct Bolt in, Rated to 16,000lbs., 3" Hitch Receiver
- 3/16" and 1/4" Cold-Rolled American Steel
- Utilizes Factory Winch + 3-way Tie-Down to Secure Spare
- 38" Spare Tire in the Factory Location
- May Require Exhaust Modification
- Requires 5/8" x 4" (usable shank) Hitch Pin
